By: Karina Helle
|
Report No.
|
1348 |
|
Discipline/Origin
|
Marine |
|
Well
|
Oselvar |
|
Date created
|
2021/02/11 |
|
Project Phase
|
Planning |
|
LL Type/Classification
|
Planning |
Borgland Dolphin
N/A Planning LL with DNO
Oselvar (A-1 H, A-2 H, A-3 HT2) – Reservoir section
PSA: Q
Det er for øvrig ikke arkivert noe utdypende informasjon om Smartblue systemet hos oss, etter møtet
hos Well Expertise 2.5.2018. Det er derimot stilt lignende spørsmål i samtykkebehandlingene nevnt
ovenfor. Til informasjon, så har vi også benyttet en rapport på vår hjemmeside som
bakgrunnsinformasjon (se kap. 7.4 https://www.ptil.no/fagstoff/utforsk-fagstoff/prosjektrapporter/
2020/evaluering-av-samarbeid-om-beredskap-omradeberedskap-fase-2/). Her står det nevnt
utfordringen med blindsoner (se tabell «overvåkningskilder»). Ifm. Borgland Dolphin, er det blindsoner
og hvordan kompenseres det eventuelt for disse?
PSA: A

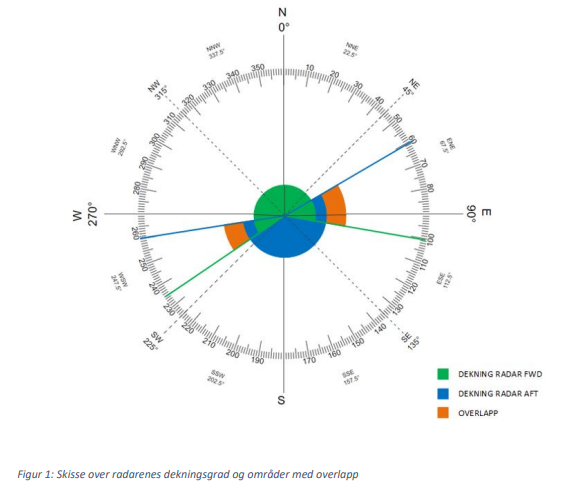

Det ikke blindsoner i radardekningen på Borgland Dolphin. Den fremre (FWD) og aktre (AFT) radaren
overlapper hverandre fra 060° – 100° og fra 235° – 260° som vist Figur 1.
Disse verdiene gir grunnlag for vedlagt skisse over radarenes dekningsområde.

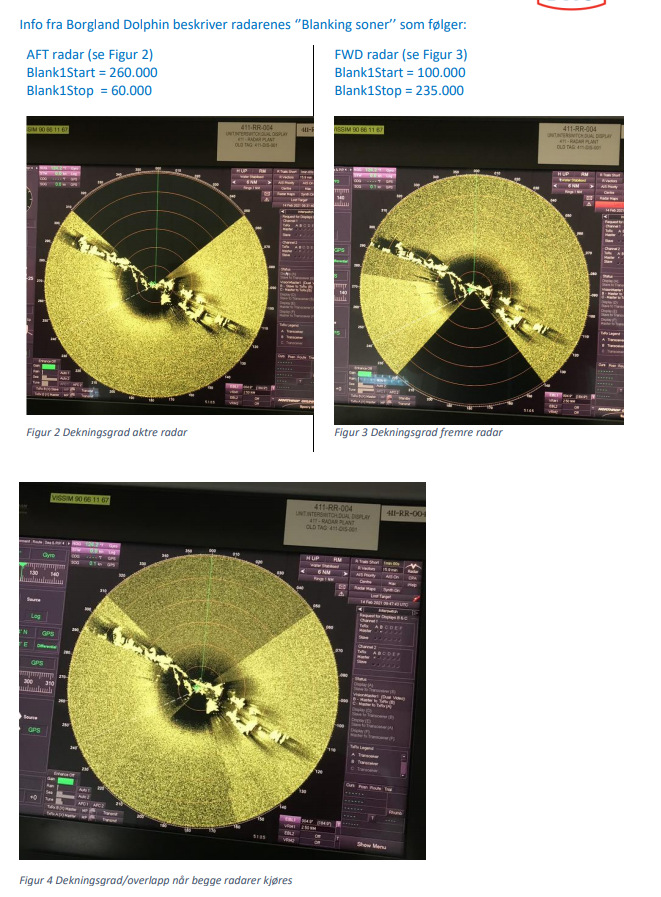

Nedenfor finner dere også bilder av radarene på Borgland Dolphin hvor kun aktre radar kjøres (Figur
2), kun fremre radar kjøres (Figur 3) og hvor begge radarer kjøres (Figur 4). Her vises radarenes
overlapping godt.
Info fra Borgland Dolphin beskriver radarenes ‘’Blanking soner’’ som følger: (Figur 2)
Borgland Dolphin
Question
Det er for øvrig ikke arkivert noe utdypende informasjon om Smartblue systemet hos oss, etter møtet
hos Well Expertise 2.5.2018. Det er derimot stilt lignende spørsmål i samtykkebehandlingene nevnt
ovenfor. Til informasjon, så har vi også benyttet en rapport på vår hjemmeside som
bakgrunnsinformasjon (se kap. 7.4 https://www.ptil.no/fagstoff/utforsk-fagstoff/prosjektrapporter/
2020/evaluering-av-samarbeid-om-beredskap-omradeberedskap-fase-2/). Her står det nevnt
utfordringen med blindsoner (se tabell «overvåkningskilder»). Ifm. Borgland Dolphin, er det blindsoner
og hvordan kompenseres det eventuelt for disse?
Answer
Det ikke blindsoner i radardekningen på Borgland Dolphin. Den fremre (FWD) og aktre (AFT) radaren
overlapper hverandre fra 060° – 100° og fra 235° – 260° som vist Figur 1.
Disse verdiene gir grunnlag for vedlagt skisse over radarenes dekningsområde.
Nedenfor finner dere også bilder av radarene på Borgland Dolphin hvor kun aktre radar kjøres (Figur
2), kun fremre radar kjøres (Figur 3) og hvor begge radarer kjøres (Figur 4). Her vises radarenes
overlapping godt.
Info fra Borgland Dolphin beskriver radarenes ‘’Blanking soner’’ som følger: (Figur 2)
