By: Drilling Supervisor
|
Report No.
|
2014 |
|
Discipline/Origin
|
Drilling |
|
Well
|
Gomez |
|
Date created
|
2021/08/14 |
|
Project Phase
|
Operational |
|
LL Type/Classification
|
Casing |
Borgland Dolphin
Negative Casing LL with DNO
Gomez (2/5-15) – Surface section
What happened:

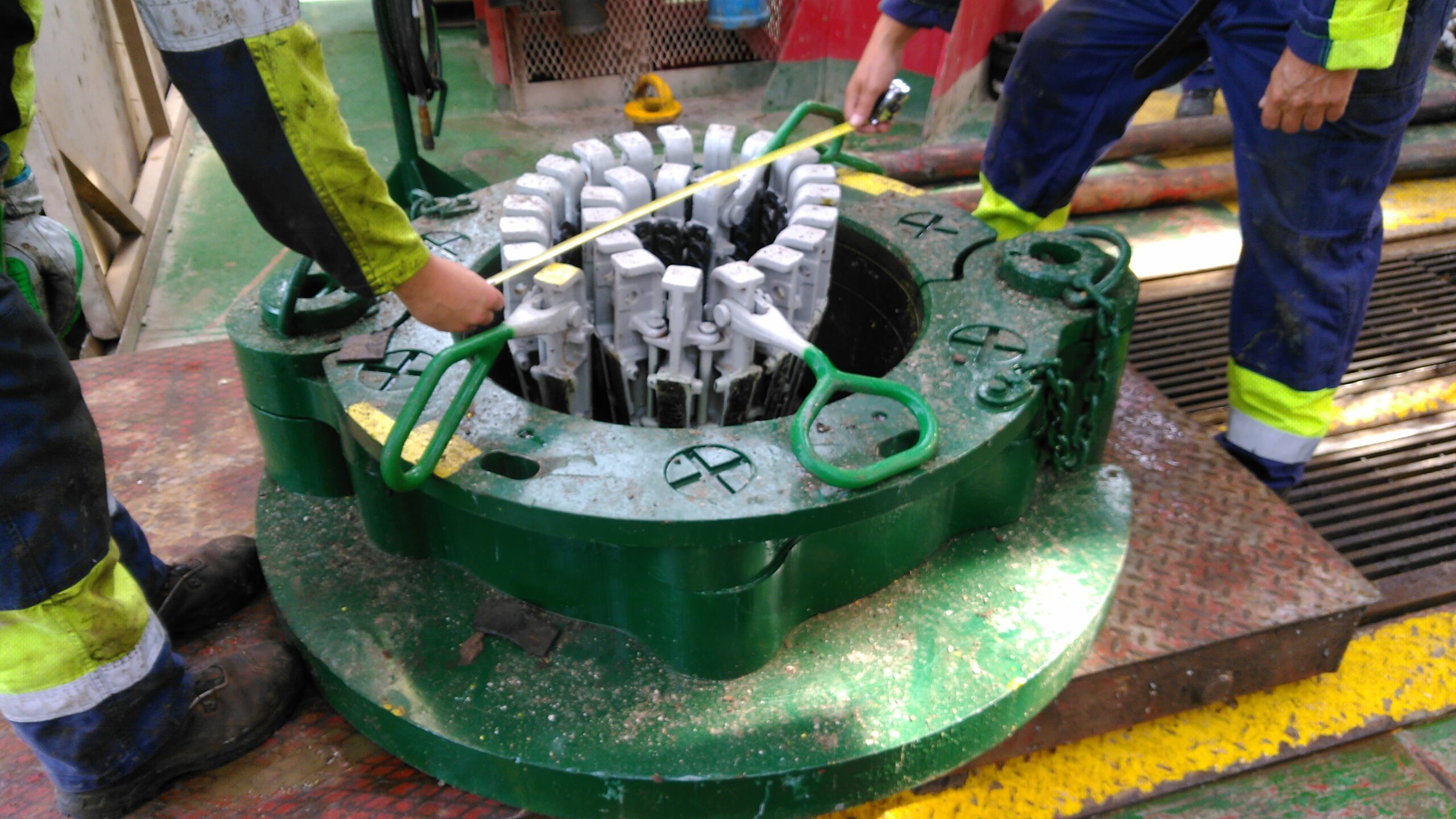

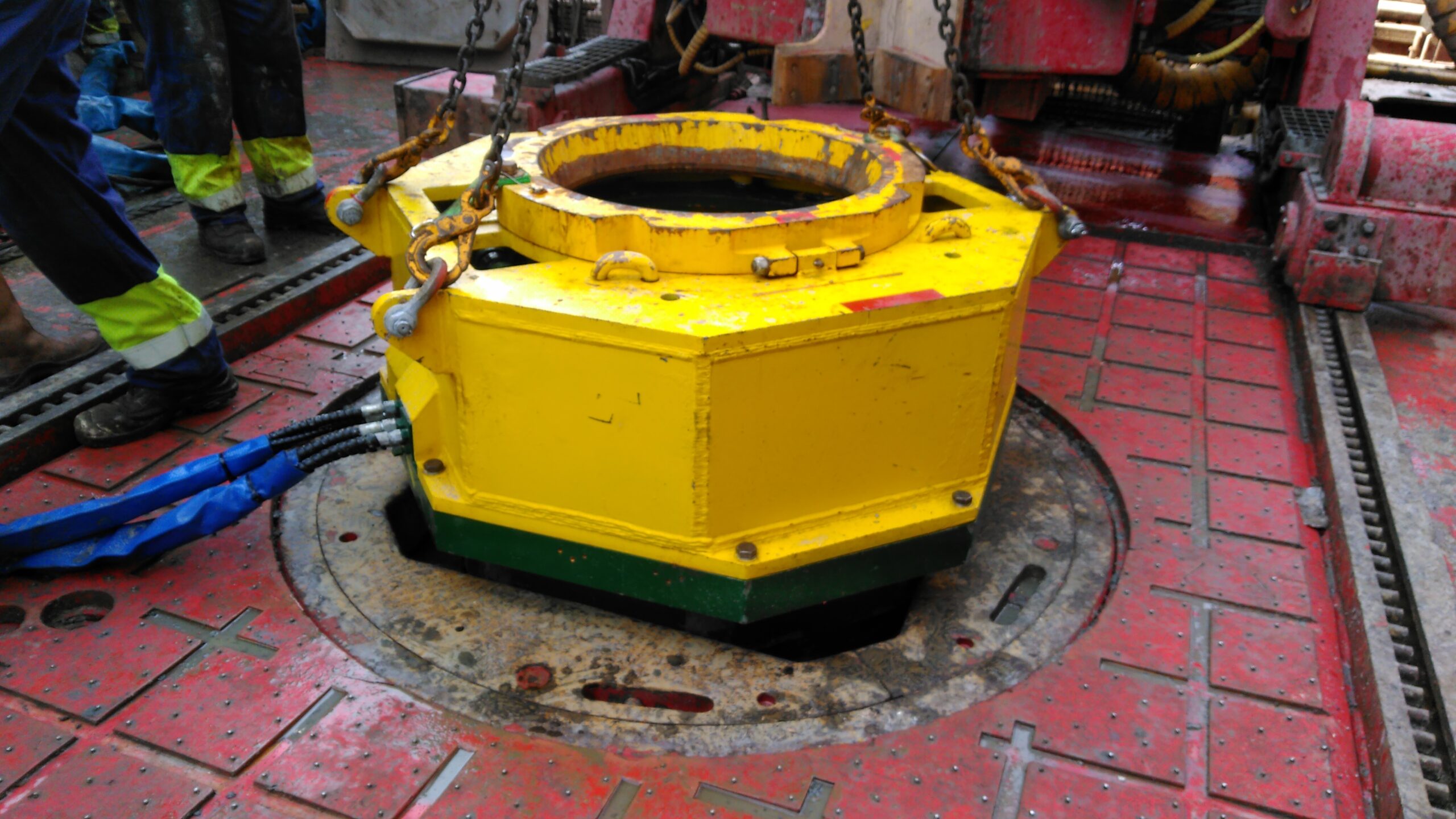

The Franks split bushing spider (SBS) did not fit inside the EMSCO rotary table on Borgland Dolphin.
What was planned:
Run 20″ casing using remote controlled spider type casing slips
What was learned:

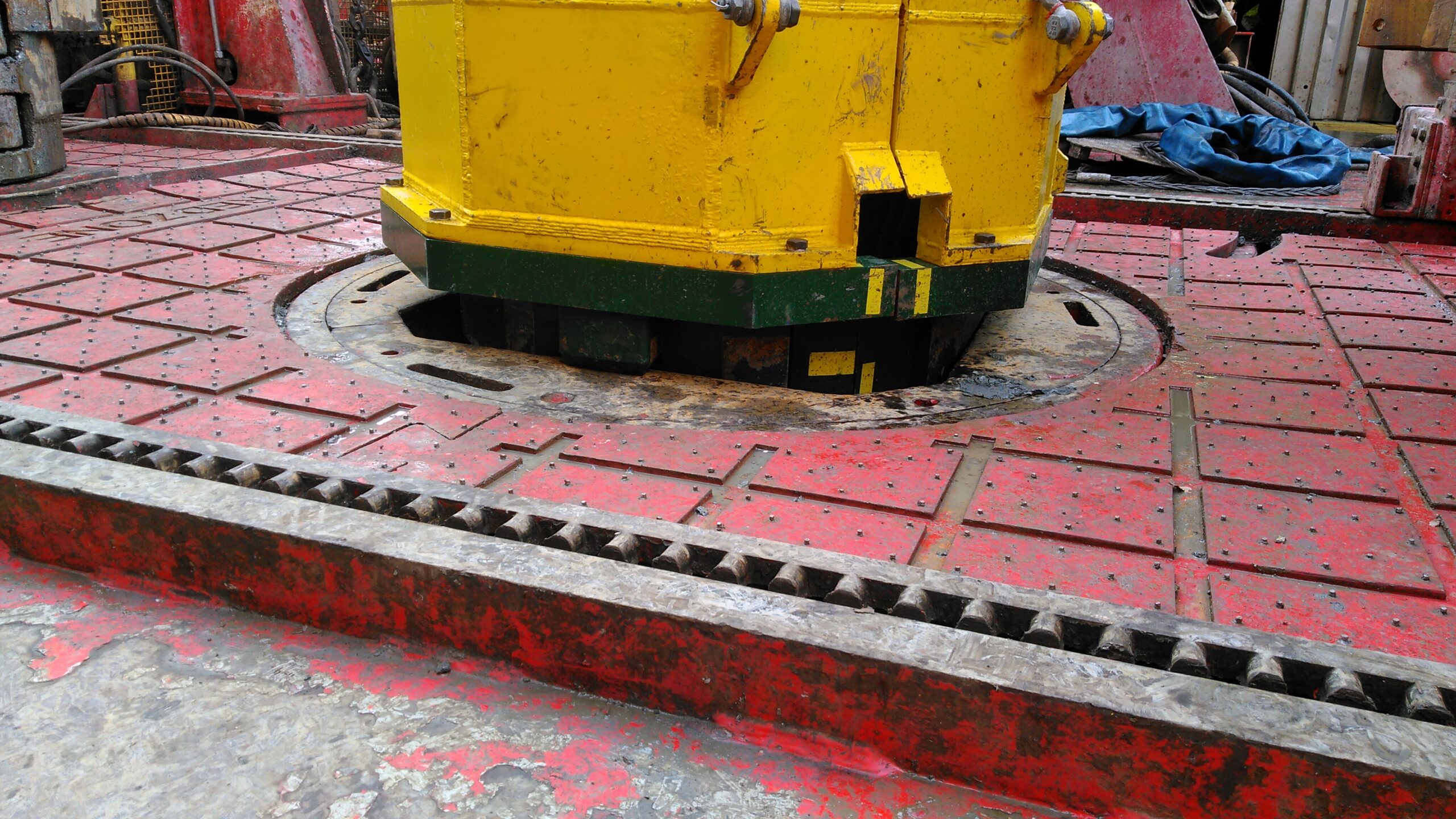

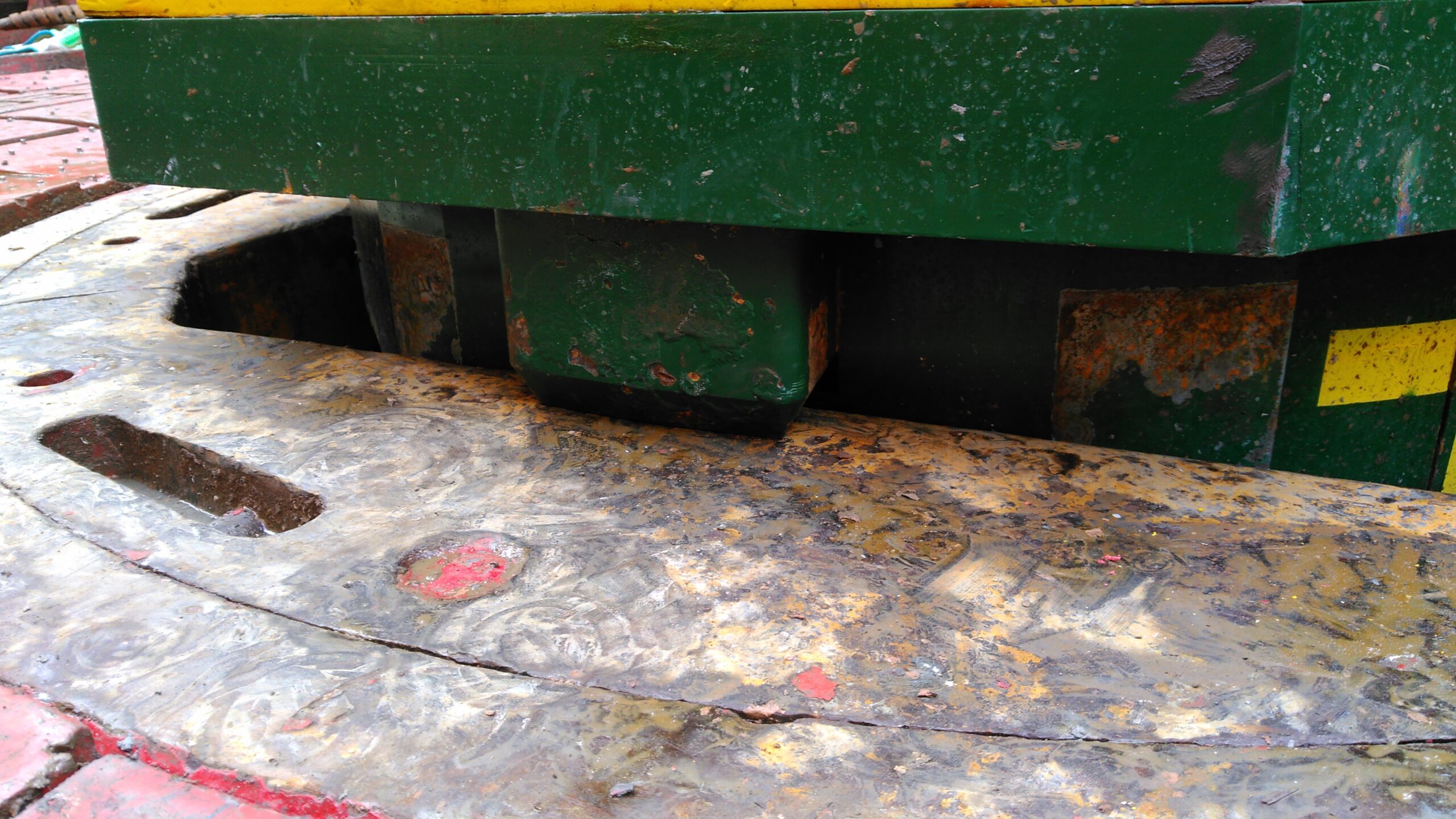

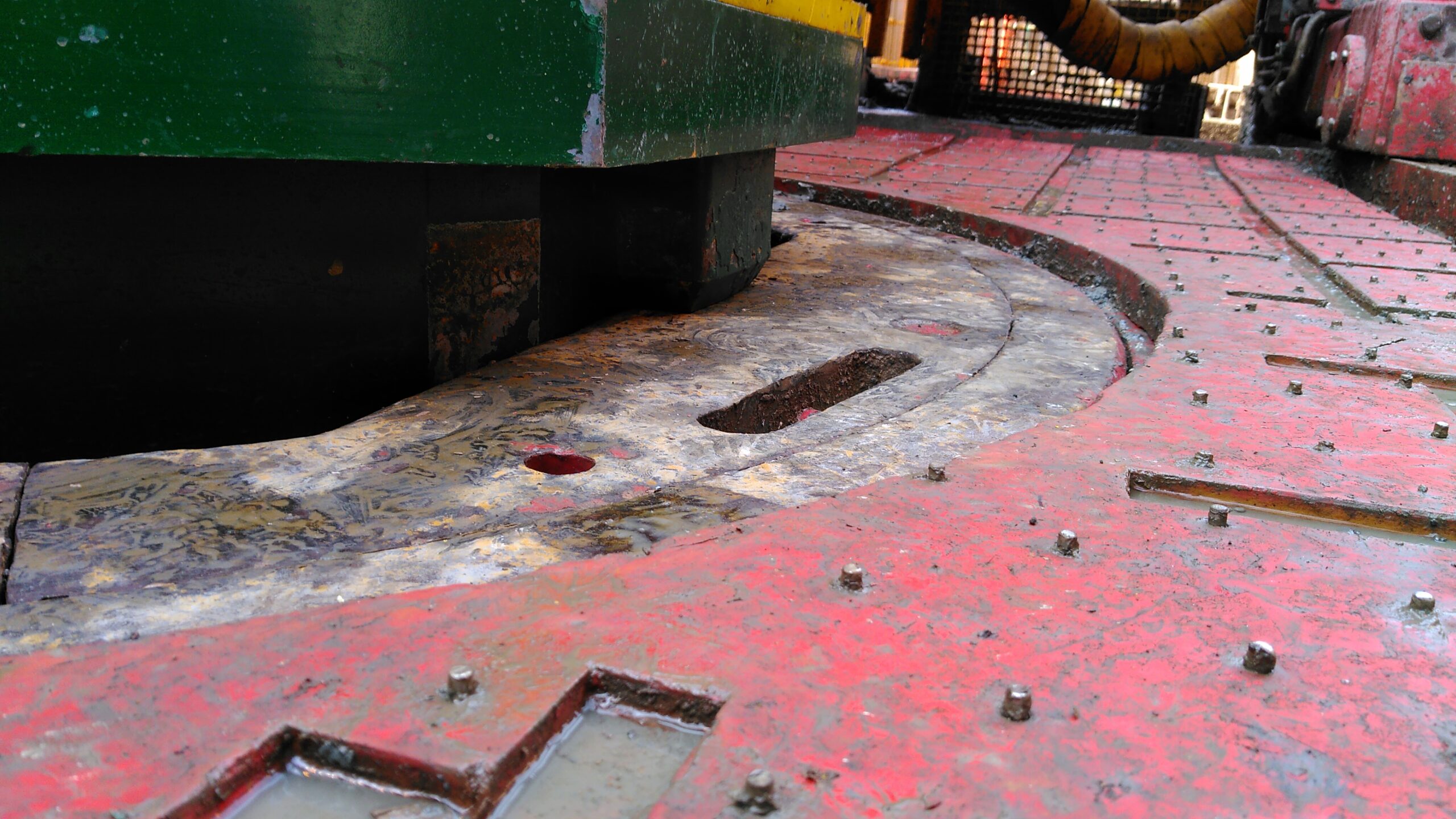

The SPS had been sent out with anti rotation lugs. These prevented the SBS to drop down into the rotary. The adapter ring had been back-loaded after the Oselvar project. It should have been kept onboard the rig.
What actions are required:
The lugs has to be removed from SBS onshore before shipped out. Alternatively the SBS with anti rotation lugs need an adapter ring it can sit on top of. This has to come out together with the SBS slips if it has rotation lugs.
External Actions
Get in contact with Franks coordinator in town?
What Was Done
The SBS was laid out, and we had to use the back-up the back-up vippe slips (also remote controlled. Lost 1.5 hr rig time.
Borgland Dolphin
What happened in Surface section:
The Franks split bushing spider (SBS) did not fit inside the EMSCO rotary table on Borgland Dolphin.
Run 20″ casing using remote controlled spider type casing slips
The SPS had been sent out with anti rotation lugs. These prevented the SBS to drop down into the rotary. The adapter ring had been back-loaded after the Oselvar project. It should have been kept onboard the rig.
The lugs has to be removed from SBS onshore before shipped out. Alternatively the SBS with anti rotation lugs need an adapter ring it can sit on top of. This has to come out together with the SBS slips if it has rotation lugs.
The SBS was laid out, and we had to use the back-up the back-up vippe slips (also remote controlled. Lost 1.5 hr rig time.
Get in contact with Franks coordinator in town?
The SBS was laid out, and we had to use the back-up the back-up vippe slips (also remote controlled. Lost 1.5 hr rig time.
